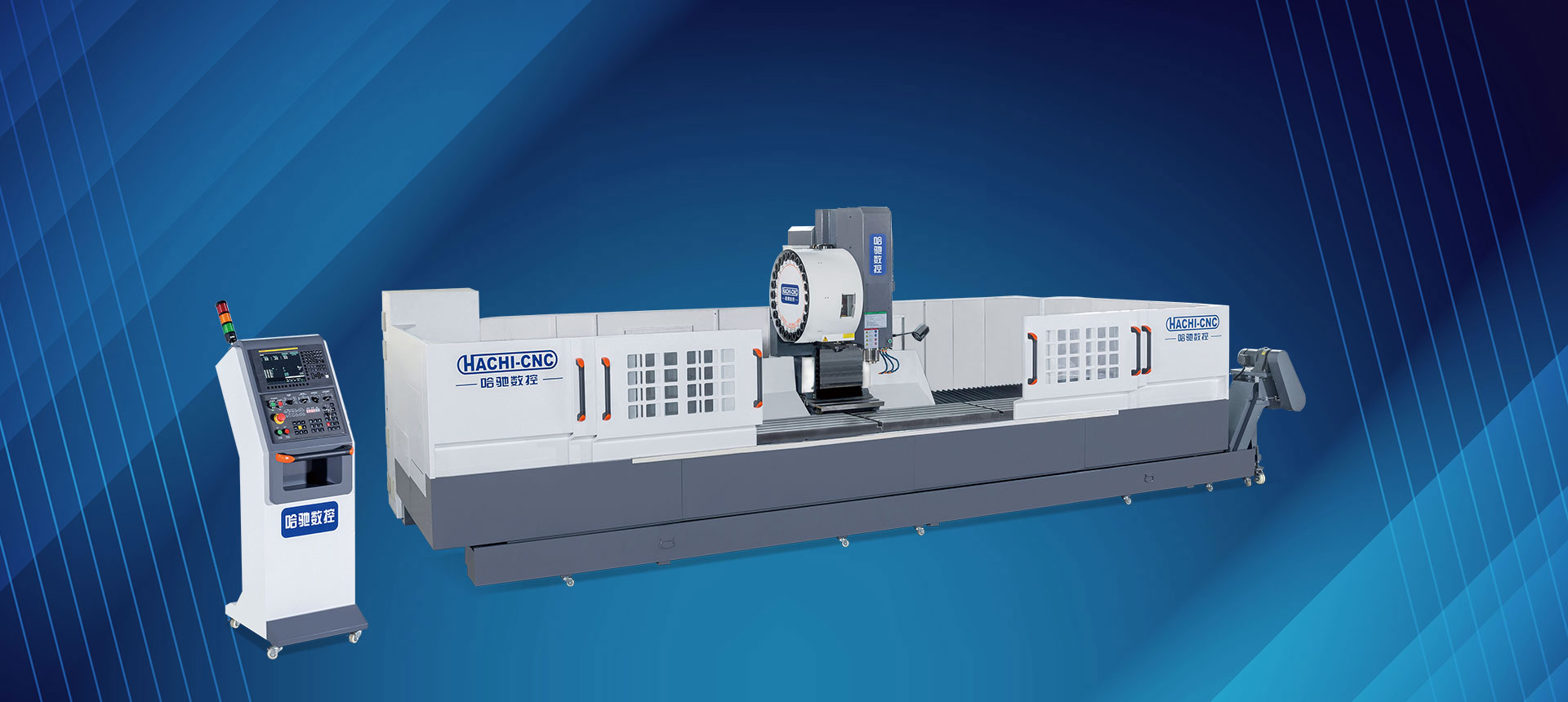

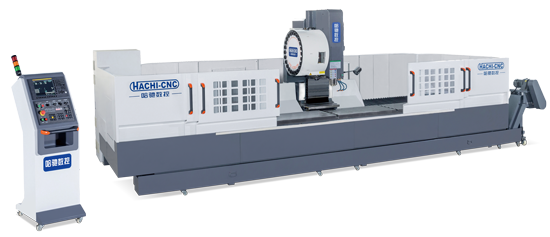

SUPER STEEL HEAVY BT40 PROFILE MACHINING CENTER (HGB SERIES)

Product video/download

Product parameters

Equipment Introduction: This equipment is an automatic composite profile processing center integrating milling, drilling and tapping. It is suitable for processing steel, aluminum, copper metal and non-metal profiles of various lengths.
Configuration introduction: BT40 spindle taper hole with diameter of 150mm is used; X/Y/Z axis is equipped with high rigidity 45# roller linear rail; imported high-end control system; high-power servo motor, the equipment is super rigid.
Application areas: mechanical parts, rail transit, aerospace, military machinery,etc.

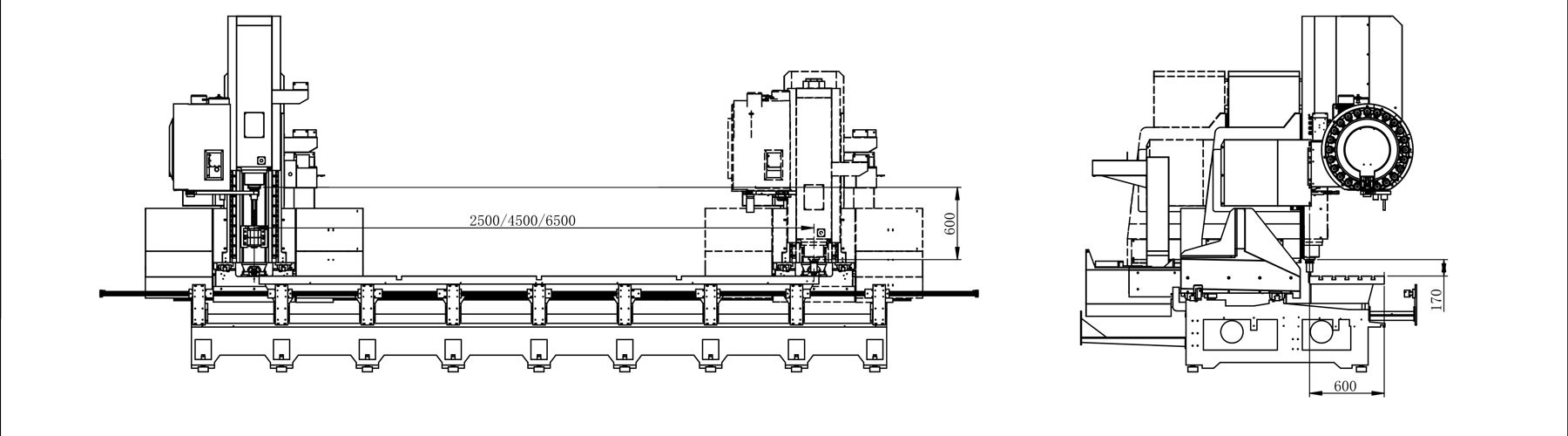

Welding frame bed HGB 2500/HGB 4500/HGB 6500

HGB Series Technical parameter table

	Project		Unit	Parameter
TRAVELS	X Axis		mm	2500/4500/6500（Other lengths can be customized）
	Y Axis		mm	600
	Z Axis		mm	600
	The distance from the nose of the spindle to the end of the table		mm	170
Move	Moving speed X/Y/Z		m/min	60	28	28
	Cutting feed rate X/Y/Z		mm/min	15000	15000	15000
PRECISION	Cutting feed rate X/Y/Z		mm	0.03	0.02	0.02
	Repeat positioning accuracy X/Y/Z		mm	0.02	0.02	0.02
Spindle	Maximum speed		rpm	12000
	Spindle taper			BT40 Standard taper
	Spindle taper			BT40
PORWER OF MOTOR	Driven motor	Power X/Y/Z	mm	3.0/3.0/3.0
	Spindle driven motor	Power	KW	11
