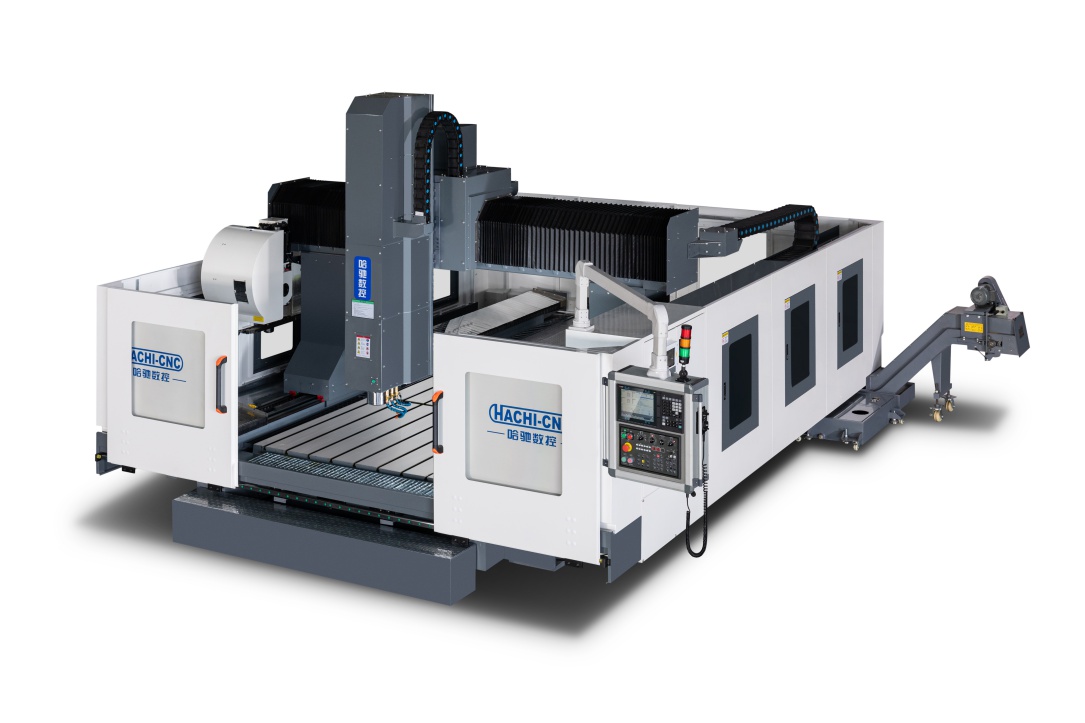

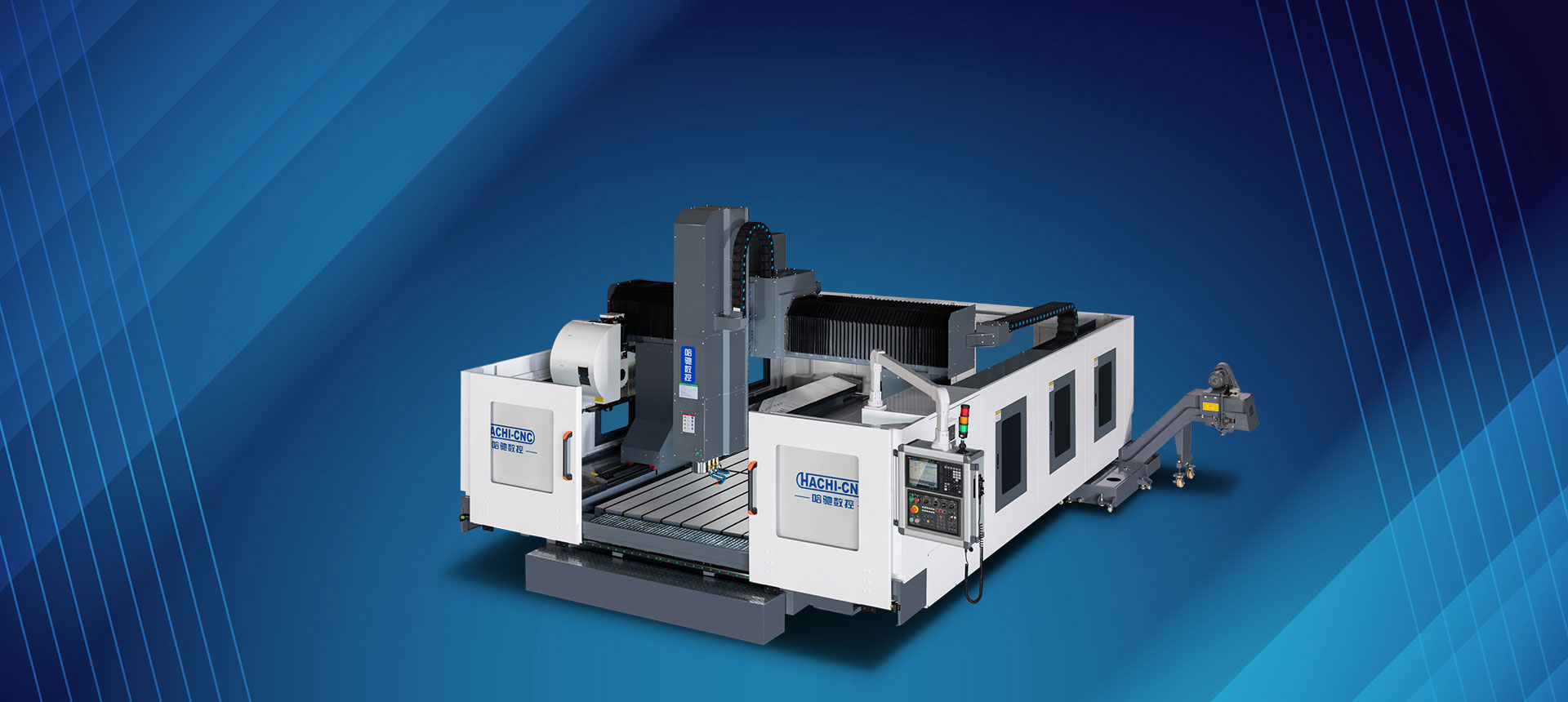

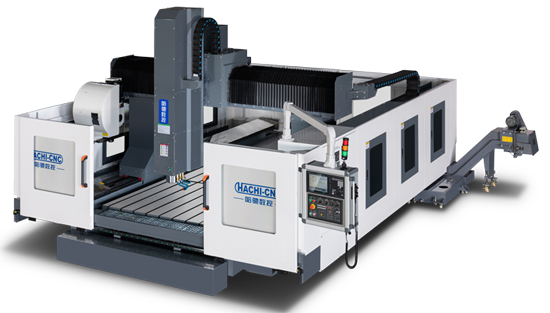

HLB LONGMEN PROCESSING CENTER（HLG SERIES）
(NEW ENERGY VEHICLE PARTS PROCESSING SPECIAL MODEL -HLG3020)
Product video/download
Contact us immediately

Product parameters

  • Equipment Introduction: This equipment SETS milling, drilling, tapping as one ofthe automatic composite profile processing center, suitable for various lengths ofsteel, copper, aluminum and non-metal profile, plate processing

  • Configuration introduction: Use 150mm diameter BT40 spindle, imported high-end CNC system, equipped with automatic chip removal machine.

  • Application: Steel profile, plate processing.


HLG 3020 PARAMETER TABLE HLG 3020 Series Technical parameter table
ProjectUnitParameter

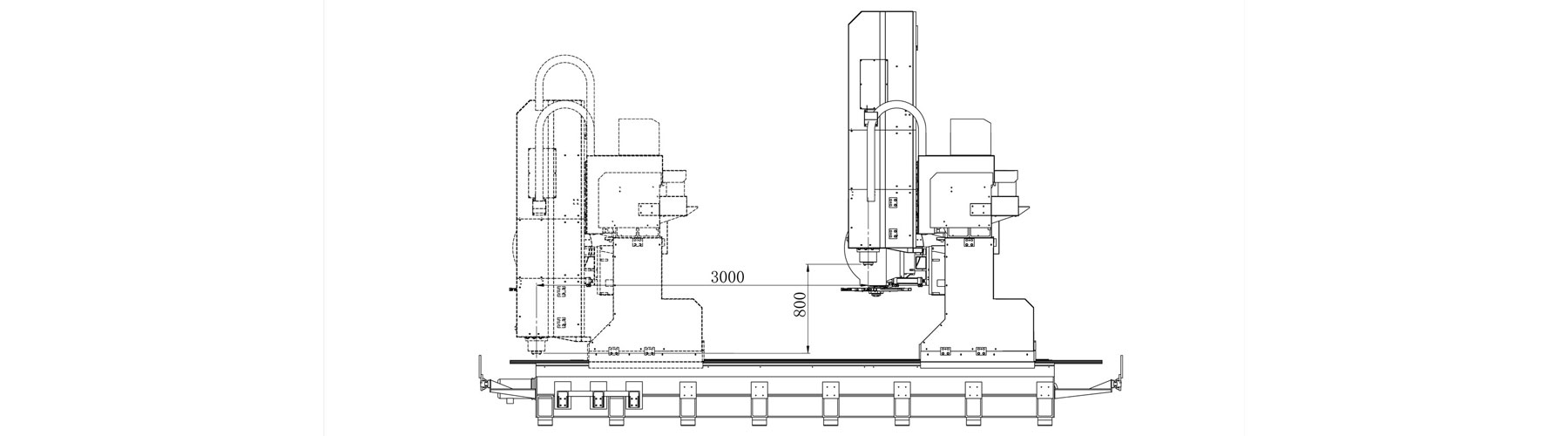

TRAVELSX Axismm3000
Y Axismm2000
Z Axismm800
The distance from the nose of the spindle to the end of the tablemm130
MoveMoving speed X/Y/Zm/min404020
Cutting feed rate X/Y/Zmm/min150001500015000
PRECISIONCutting feed rate X/Y/Zmm0.050.030.03
Repeat positioning accuracy X/Y/Zmm0.0230.030.03
SpindleMaximum speedrpm12000
Spindle taperBT40 Standard taper
Spindle tapermm150
PORWER OF MOTORDriven motorPower X/Y/Zmm3.0+3.0/3.0/3.0
Spindle driven motorPowerKW7.5
ProjectUnitParameter
TOOLSTool changer formatDisc type
Spindle taperBT40
Tool capacitysec16
Tool change timesec1.8
Pull studs format45°
LUBRICATING SYSTEM Lubricating systemAutomative lubricating
Cooling systemWater cooling system
POWERElectricityKVA30（380V、50HZ）KVA
Gas sourcempa0.6Mpa-0.9Mpa
MECHNICAL SPECIFICATIONOperating systemMITSUBISHHI
Overall heightAbout 3800
Machine widthmmAbout 4300+1300
Overall lengthmmAbout 6200+800
Areamm³About 6200*4300+1300
WeightKGAbout 16000KG
×
×
