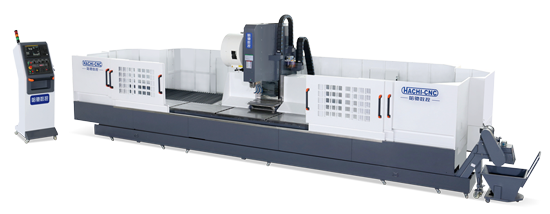

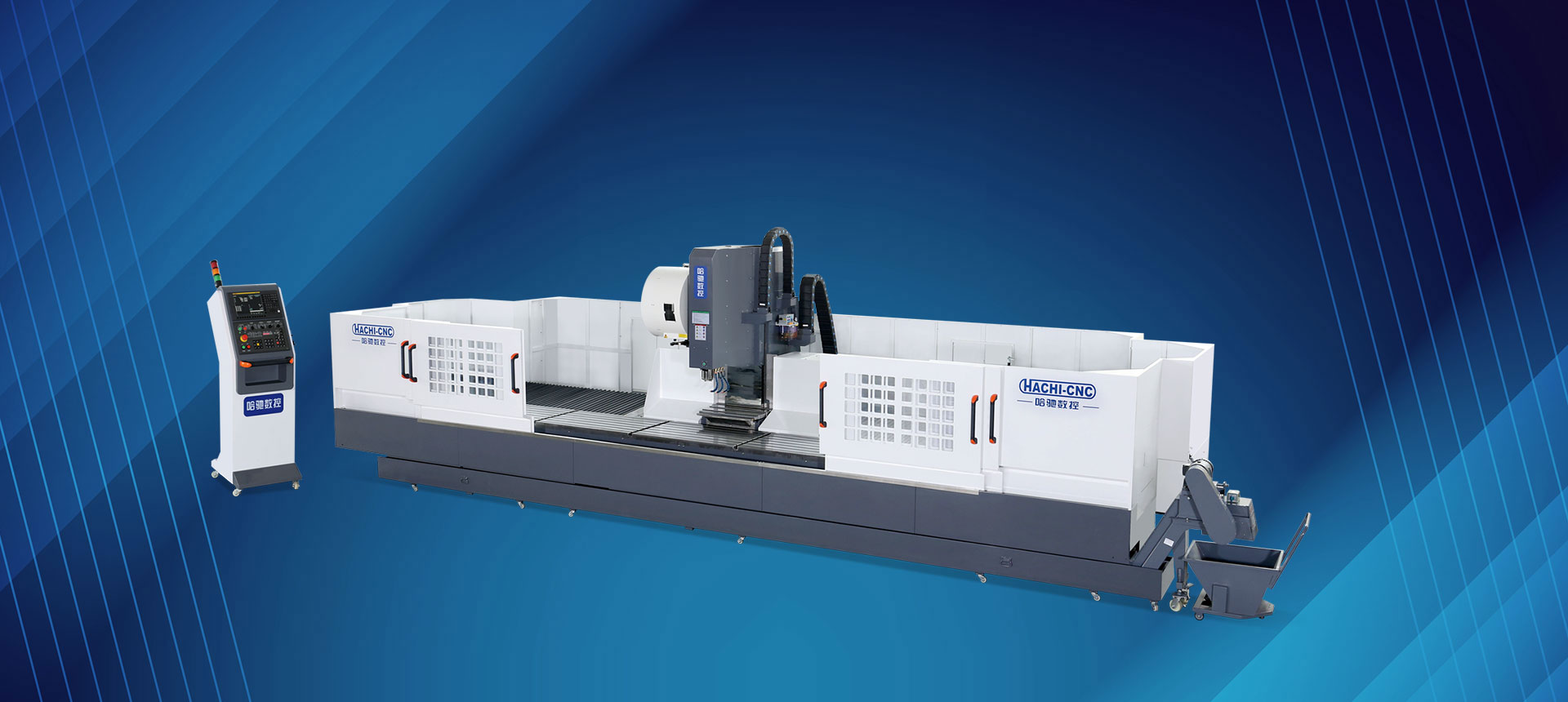

ULTRA-WIDE BT50 PROFIL .E MACHINING CENTER (HDC SERIES)

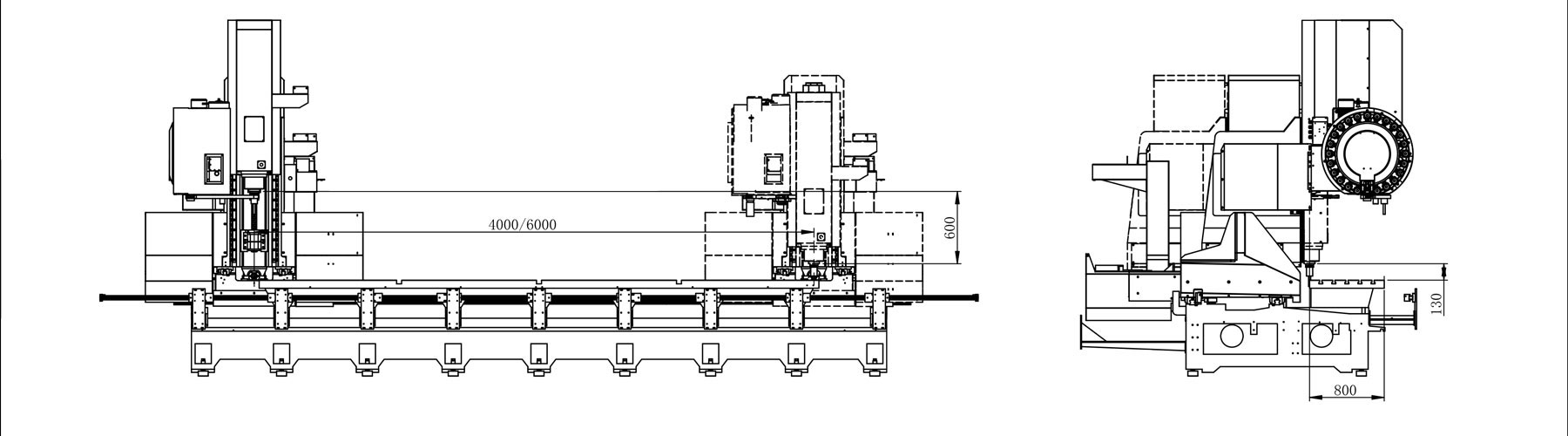

View the cable tray diagram

Product display/download

Product parameters

Equipment Introduction: This equipment is an automatic composite profile processing center integrating milling, drilling and tapping. It is suitable, for processing steel, aluminum, copper metal and non-metal profiles of various lengths. It is especially suitable for processing heavy aluminum profiles and steel profiles.
Configuration introduction: BT50 spindle taper hole with diameter of 155mm is used; X/Y/Z axis is equipped with high rigidity 45# roller linear rail; imported high-end control system; high-power servo motor, the equipment is super rigid.
Application areas: Echanical parts, rail transit, aerospace, military machinery, etc.

Welding frame bed HDC 2500/HDC 4500/HDC 6500

HDC Series Technical parameter table

	Project		Unit	Parameter
TRAVELS	X Axis		mm	4000/6000
	Y Axis		mm	800
	Z Axis		mm	600
	The distance from the nose of the spindle to the end of the table		mm	130
Move	Moving speed X/Y/Z		m/min	60	28	28
	Cutting feed rate X/Y/Z		mm/min	15000	15000	15000
PRECISION	Cutting feed rate X/Y/Z		mm	0.03	0.02	0.02
	Repeat positioning accuracy X/Y/Z		mm	0.02	0.02	0.02
Spindle	Maximum speed		rpm	8000
	Spindle taper			BT50 Standard taper
	Spindle taper			BT50
PORWER OF MOTOR	Driven motor	Power X/Y/Z	mm	3.0/3.0/3.0
	Spindle driven motor	Power	KW	15
