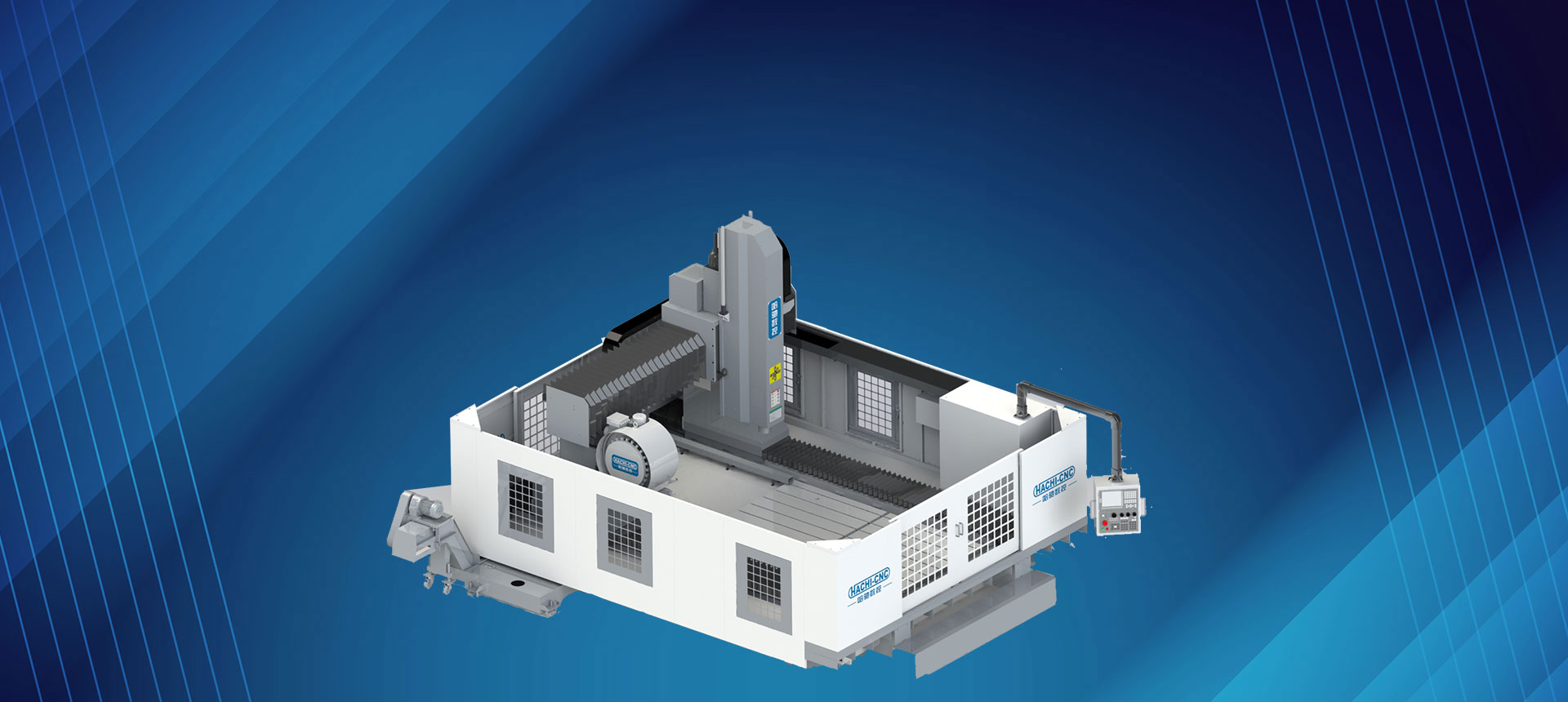

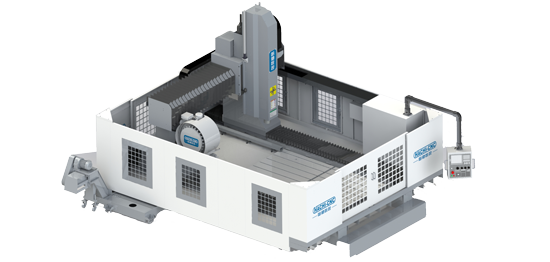

HLB LONGMEN PROCESSING CENTER

(NEW ENERGY VEHICLE PARTS PROCESSING SPECIAL MODEL -HLB3020)

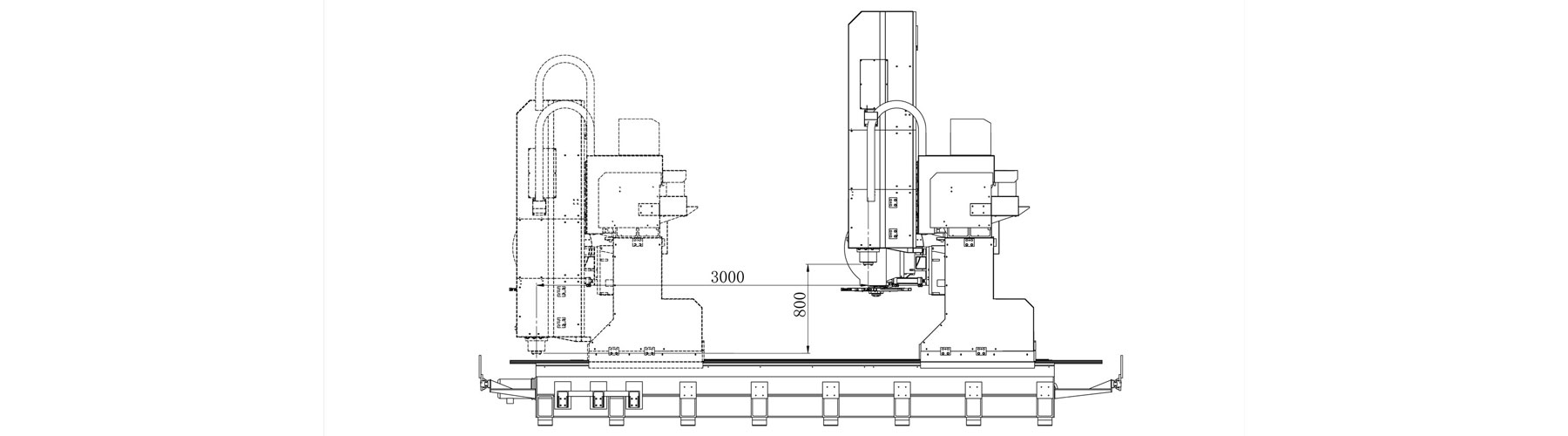

View the cable tray diagram

Product display/download

Product parameters

Equipment Introduction: This equipment SETS milling, dilling, tapping as one of the automatic composite profile processing center, suitable for various lengths of copper, aluminum and nonmetal profiles, plate processing.
Configuration introduction: Use. 120mm diameter BT40 spindle, imported high-end CNC system, equipped with automatic chip removal machine.
Application:New energy vehicle battery tray, plate processing, rail transit,etc.
Feature overview: New energy vehicle parts processing special, processing partsrange, high processing accuracy, strong rigidity.

HLB 3020 PARAMETER TABLE HLB 3020 Series Technical parameter table

	Project		Unit	Parameter
TRAVELS	X Axis		mm	3000
	Y Axis		mm	2000
	Z Axis		mm	800
	The distance from the nose of the spindle to the end of the table		mm	130
Move	Moving speed X/Y/Z		m/min	40	40	20
	Cutting feed rate X/Y/Z		mm/min	15000	15000	15000
PRECISION	Cutting feed rate X/Y/Z		mm	0.05	0.03	0.03
	Repeat positioning accuracy X/Y/Z		mm	0.023	0.03	0.03
Spindle	Maximum speed		rpm	12000
	Spindle taper			BT40 Standard taper
	Spindle taper		mm	120
PORWER OF MOTOR	Driven motor	Power X/Y/Z	mm	3.0+3.0/3.0/3.0
	Spindle driven motor	Power	KW	7.5
